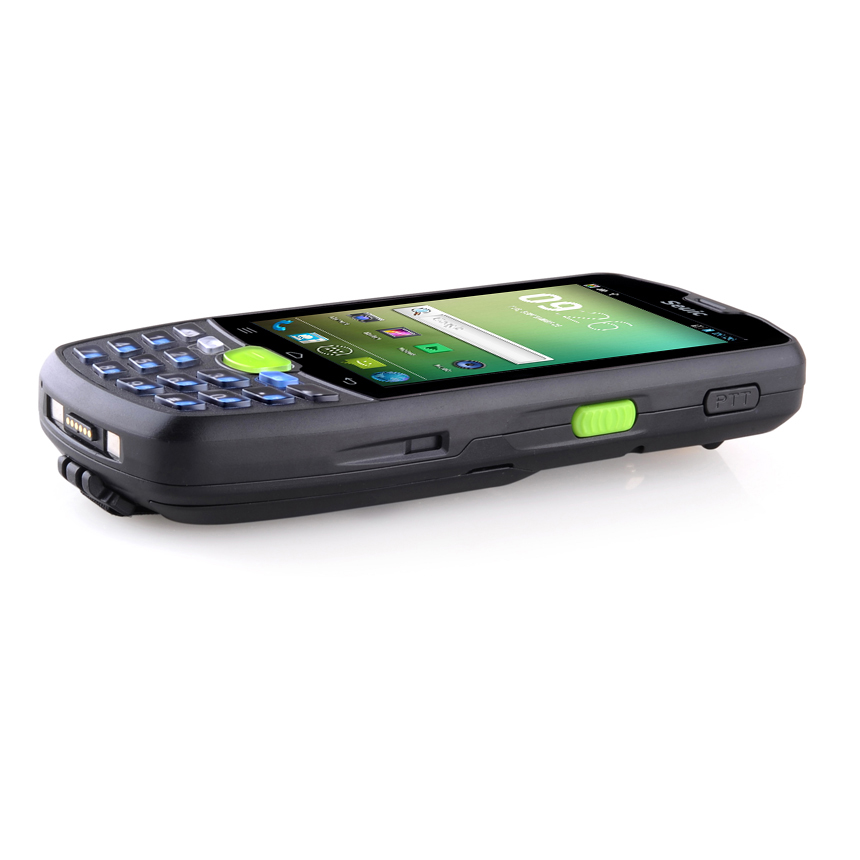

4.0 inch size big display Android handheld terminal

When handheld terminals to be used you might meet these problems: can’t be operated with glove or in the dusty or rainy environment, no shortcut key to help……We thought that the handheld device with physical keys would fit better for industrial applications! AUTOID9 is concerned of user operating experience, adopts keyboard virtual keys+ physical keys to solve the above mentioned problems without any compromise of portability.

  • Advanced capacitive touch and visible display
  • Lightweight, exquisite and portability design
  • Practical and rapid physical key matches
  • Total security design
  • Perfect barcode scanning solutions
  • 12 hours working time

Operating system(OS):Android4.3 or Android4.4
Processor(CPU):Cortex-A7 Quad core 1.2GHz
User storage space:none
User memory expansion:Micro SD Card, 32GB SDHC compatible

Size:156mm(H)×70mm(W)×21mm(T) (27mm at barcode engine)
Weight:270g (Including battery depends on different configurations)
Notice:Sound, vibration, LED indicator light
Display type:4 inch size industrial grade low temperature resistant, IPS screen, 800(H)×480(W) (WVGA)
Touch screen:Capacitive, touchable, dual mode touch-with or without a thick glove/with or without wet hand
LED backlight:LED backlight
Keyboard option:17 key/22 key crystal button
Audio options:Built-in double speakers, built-in microphone, the 3.5 mm stereo headset interface
Sensor:Acceleration sensor, light sensor, electronic compass and gyroscope

Drop specifications:Multiple 5 ft./1.5m drops to concrete across the operating temperature range
Seal protection grade:IP67
Humidity:5% to 95% RH non-condensing
Working temperature:-20℃ to +50℃
Storage temperature:-40℃ to +60℃ (Battery included) -40℃ to +70℃ (Battery excluded)
Electrostatic discharge(ESD):±15kV Air discharge, ±8kV direct discharge
Earthquake resistance and impact resistance:1,000 1.64 ft./0.5 m tumbles (2,000 drops)

Options 1.One dimensional laser scanning engine
Options 2.Two dimensional image engine
Options 3.RFID read/write:HF
Options 4.GPS geographical position information acquisition:5-10meter(OPEN SKY)
Options 5.Image acquisition:5.0 mega pixel
Options 6.Temperature measurement:none
Options 7.Fingerprint acquisition:none
Options 8.License acquisition:none

Options 1.Wireless LAN:WIFI: IEEE 802.11a/b/g/n (2.4G/5G dual-frequency WIFI)
Options 2.Wireless wide area network:WCDMA/WCDMA+EVDO+TD-SCDMA
Options 3.Wireless personal area network:Bluetooth 4.0 (Dual mode, support BLE)

Battery:Removable 3.8 V 4000mAh li-ion rechargeable battery
Built in 3.7V 60mAh li-ion backup battery

The handheld equipment warranty:24 months since the date of delivery in the case of non-artificial damage

Universal adapter×1

USB cable×1

Hand Tether×1

Battery ×1

Hand Belt×1

Magnetic tail plug

Single-Slot Battery Charger

4-Slot Battery Charger

Single-Slot Charging Dock

5-Slot Charging Dock

Touch pen

Pistol grip

Vehicle mounted charging rack

Vehicle charger

Multifunctional bag

knapsack for Pistol Grip

Protective cover

Screen protector
