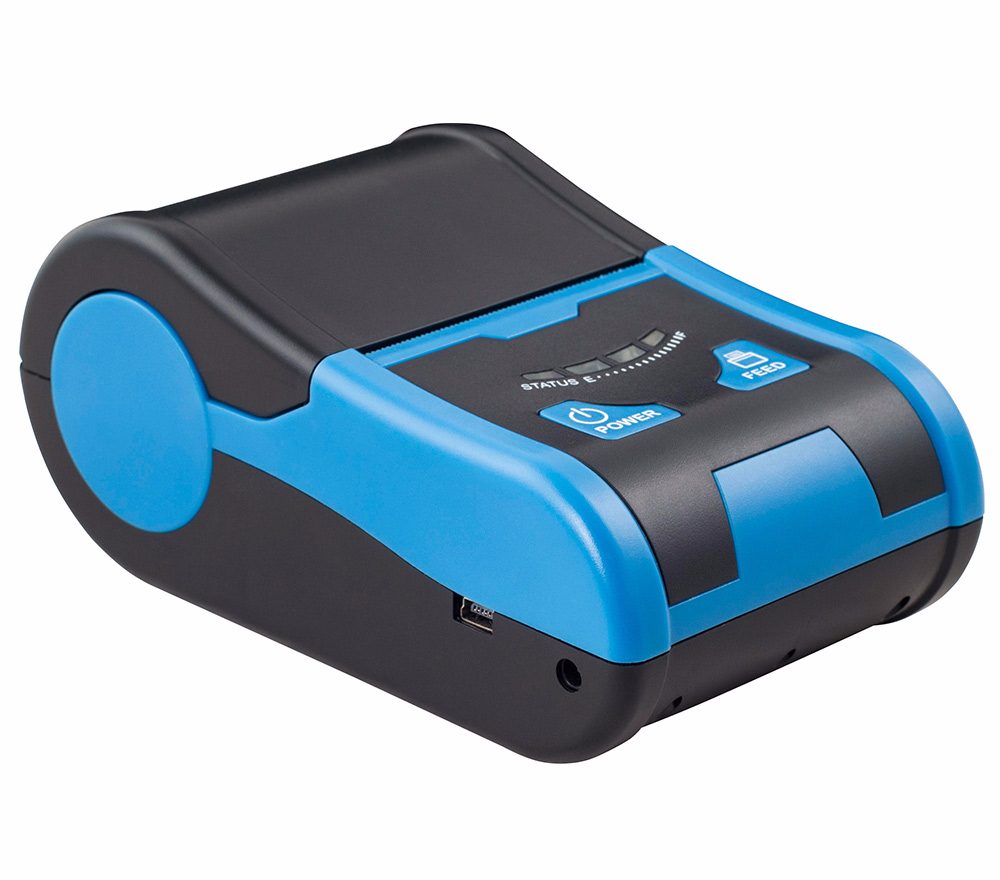

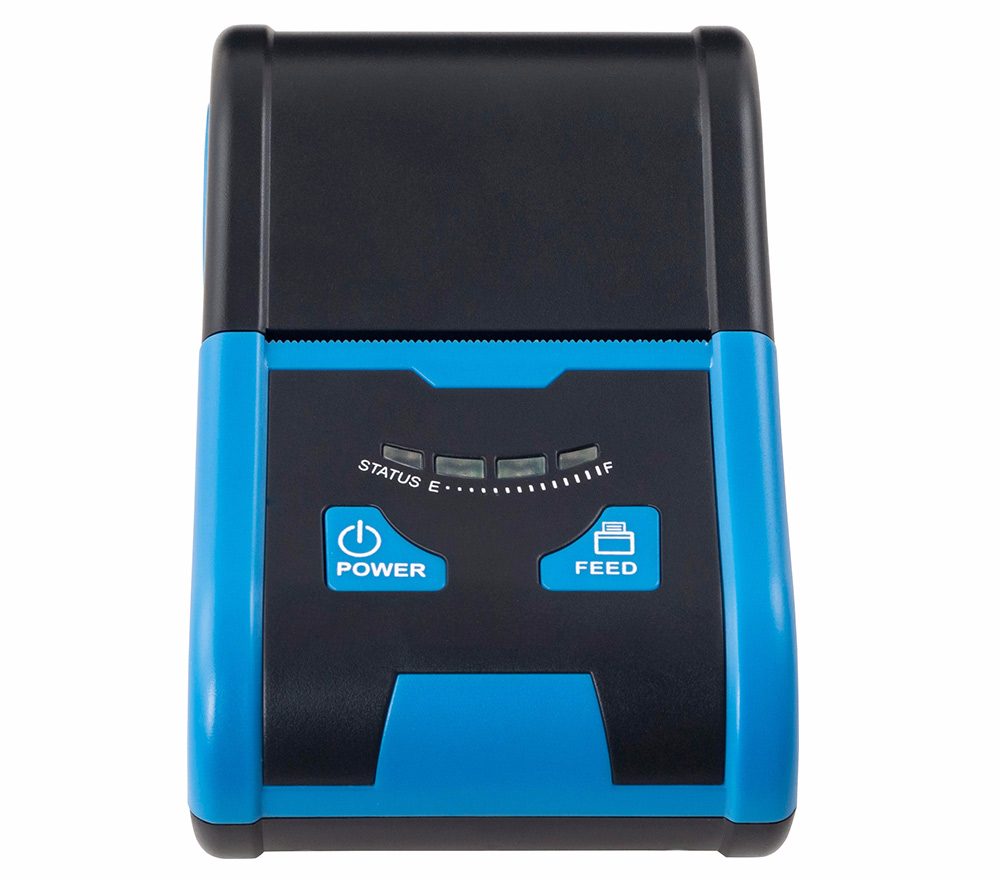

SE-P500
an excellent performance mobile printer
SE-P500 is a receipt & label printer with fashionable design and splendid quality. It supports NV logo download picture printing ( picture BMP ), support concentration adjustment, support IAP online upgrade, support paper shortage alarm, power will try to beep prompt, default 60 minutes without printing automatically shutdown to protect power, supports thermal paper label positioning printing, SE-P500 is a partner for you.
Printing method Direct thermal
Print width 48mm
Column capacity 8dots/mm, 384dots/line
Printing speed 70mm/s
Interface USB+Serial+Bluetooth
Printing paper 57.5±0.5mm×φ30mm
Line spacing 3.75mm (Adjustable by commands)
Column number 58mm paper: Font A – 32 columns/Font B – 42 columns/ Chinese,traditional Chinese – 16 columns
Character size ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）
Extension character sheet
PC347（Standard Europe）/ Katakana / PC850（Multilingual） / PC860（Portuguese） / PC863（Canadian-French）/ PC865（Nordic） West Europe / Greek / Hebrew / East Europe / Iran / WPC1252 / PC866（Cyrillic#2）/ PC852（Latin2）/ PC858 / IranII / Latvian / Arabic / PT151（1251）
Barcode types
1D Barcode: UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/ CODABAR/ITF/CODE39/CODE93/CODE128
2D Barcode: QR CODE （default）； PDF417（alternative
2D Barcode: QR CODE/PDF417
Input buffer 32k bytes
NV Flash 64k bytes
Power supply Input：AC 110V/240V, 50～60Hz
Power source Output：AC 9V-2A
Weight 0.213 KG (including battery)
Dimensions 150×80×58mm(L*W*H)
Work environment Temperature (0～45) humidity(10～80%)
Storage environment Temperature(-10～60℃) humidity(10～90%)
Printer head life 50KM
Printing width 58mm Φ50mm
Printing speed 70mm/s
Interface USB+Bluetooth / USB+Wifi / USB+Wifi+Bluetooth
Resolution 8 dots(203dpi)
Printing paper 58mm paper: Font A – 32 columns/Font B – 42 columns
Weight 213g(including battery)
