SE-P800

High quality printing, easy to operate

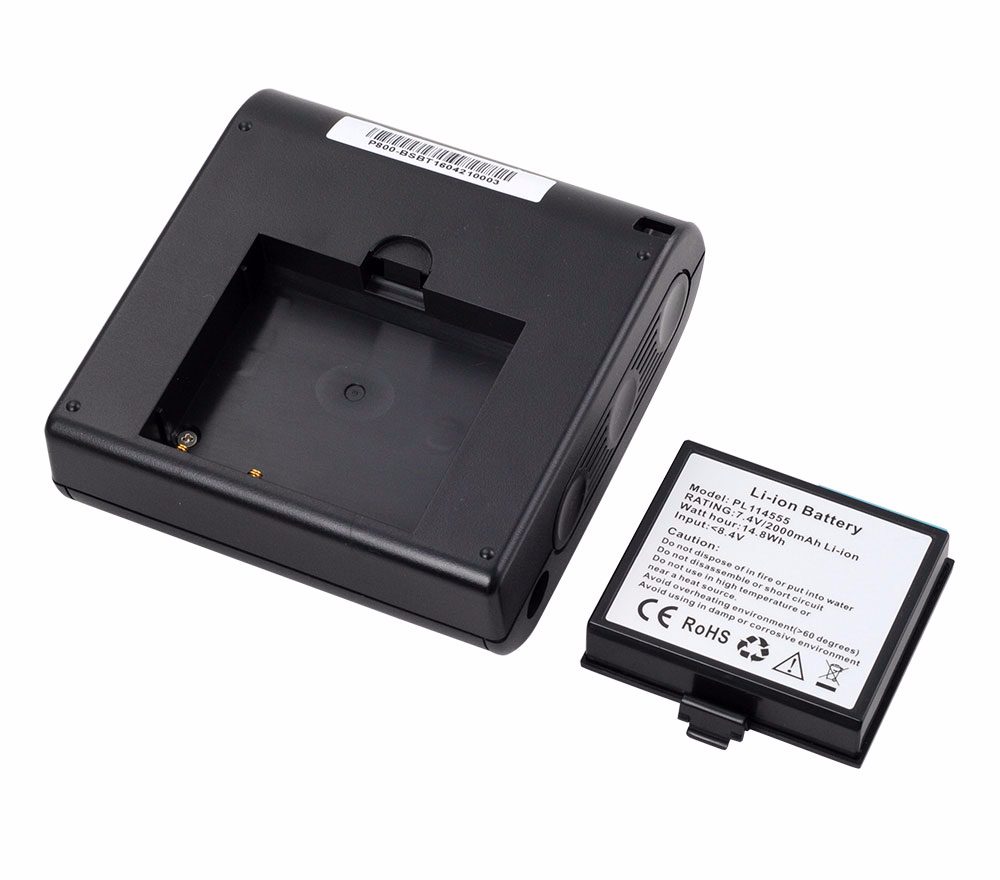

XP-P800 is an excellent performance mobile printer. It’s with 2000mAh lithium lon battery, and is widely used in police, tobacco, postal, transportation, distribution and other fields.

Printing width 72mm
Printing speed 50mm/s
Resolution 8dots(203dpi)/mm
Interface USB+Serial+Bluetooth
Printing paper 79.5±0.5mm×φ40mm
Weight 0.26kg
Dimension 108.5×105×48mm (D x W x H)

Printing method Direct thermal
Printing width 72mm
Column capacity 8dots/mm, 384dots/line
Printing speed 50mm/s
Interface USB+Serial+Bluetooth
Printing paper 79.5±0.5mm×φ40mm
Line spacing 3.75mm (Adjustable by commands)
Column number 58mm paper: Font A – 32 columns/Font B – 42 columns/ Chinese,traditional Chinese – 16 columns
Character size ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese,traditional Chinese:3.0×3.0mm(24×24 dots)

Extension character sheet
PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、IranII、Latvian、Arabic、PT151(1251)
Barcode types
1D Barcode: UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/ CODABAR/ITF/CODE39/CODE93/CODE128
2D Barcode: QR CODE/PDF417

Input buffer 32k bytes
NV Flash 64k bytes

Power supply Input:AC 110V/240V, 50~60Hz
Power source Output:DC 9V-2A

Weight 0.26KG
Dimension 108.5×105×48mm(D x W x H)

Work environment Temperature (0~45)  humidity(10~80%)
Storage environment Temperature(-10~60℃) humidity(10~90%)

Printer head life 50KM
